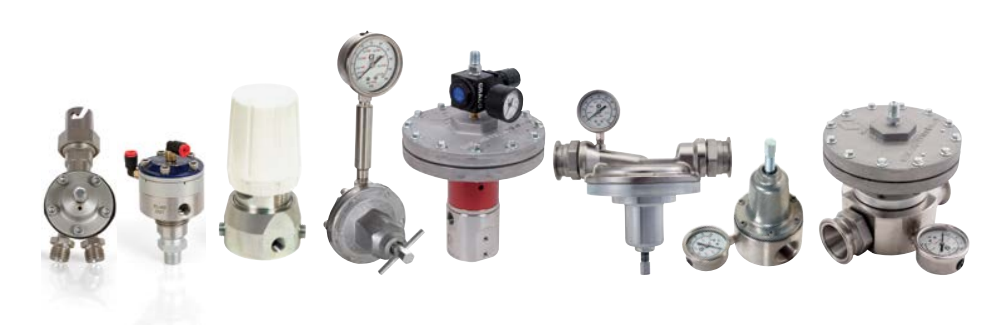

Pressure Regulators
Patvin is the leading Graco distributor in India that offers top-notch pressure regulators to meet all of your finishing needs. These fluid pressure regulators and back pressure regulators can be used for a wide array of finishing applications and materials.
Fluid Regulator
Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves. This ensures the process is stable and maintains the optimal conditions needed for a smooth paint finish, consistent extrusion or steady flow.
Back Pressure Regulator
Back pressure regulators are used to control upstream fluid pressure. They use closed-loop control to maintain the pressure of the system regardless of flow demand. This allows operators to trigger guns, valves, and other flow controls without changing the system pressure.

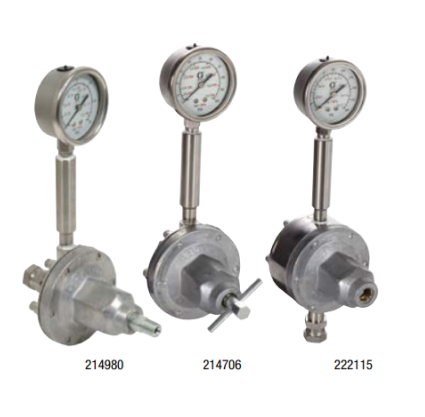

Low Pressure Fluid Pressure Regulator
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Removable adjustment key eliminates operator interference
- Manual quick flush mode ensures easy cleaning without impacting production settings
- Air operated model (214980) provides easy automation opportunities
- Low shear model (222115) uses laminar diaphragm valve to reduce material degradation and color matching issues, especially with metallic paint
- Tungsten and carbide materials ensure low wear and long life
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness

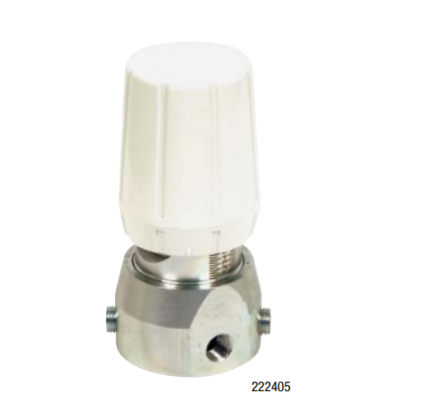

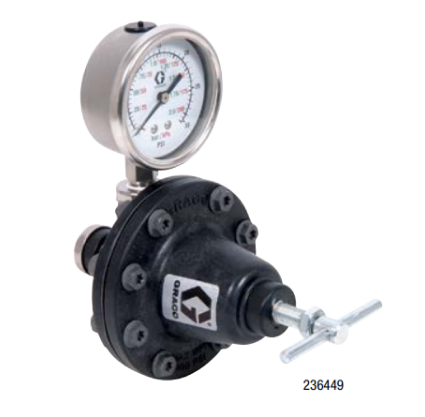

Low Pressure Lightweight Composite Fluid Pressure Regulator
- Lightweight composite material is compatible with waterborne materials
- PTFE, stainless steel seat, and carbide ball provide wear resistance
- Air operated model (241976) provides easy automation opportunities
- Pressure adjustment key with locking mechanism protects production settings

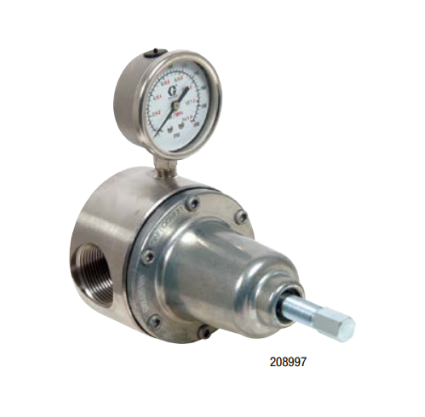

High Pressure Corrosion Resistant Fluid Pressure Regulator
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Air operated model (241976) provides easy automation opportunities
- Tungsten and carbide materials ensure low wear and long life
- Valve cartridge for quick cleaning and replacement – reduce downtime
- Glycerin filled gauge for accurate pressure reading

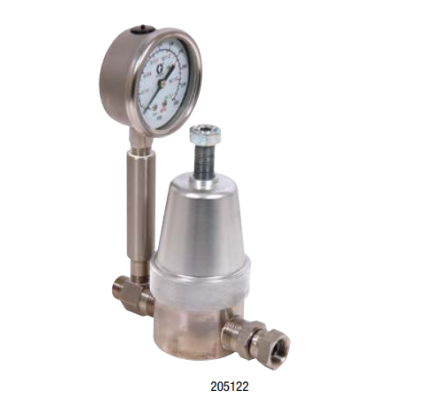

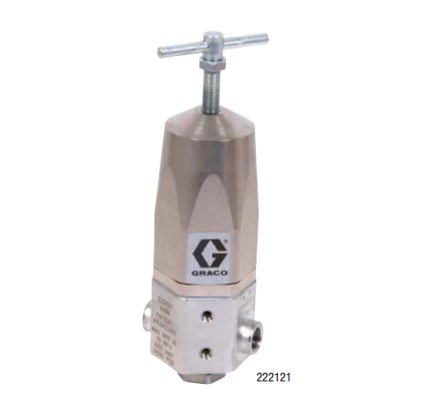

High Pressure Corrosion Resistant Mini Fluid Pressure Regulator
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Pressure adjustment key with locking mechanism protects production settings
- Valve cartridge for quick cleaning and replacement – reduce downtime
- Compact and lightweight design saves space and reduces payload for spray packages
- Tungsten and carbide materials ensure low wear and long life

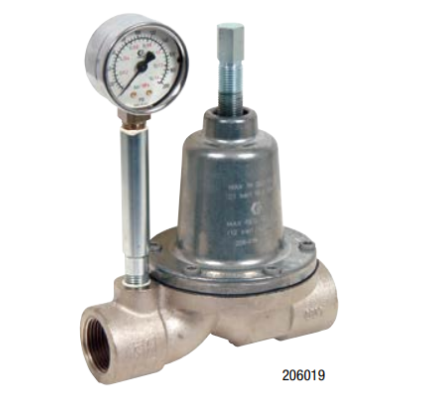

High Pressure Fluid Pressure Regulator
- Tungsten and carbide materials ensure low wear and long life
- Plated carbon steel housing is compatible with solvent-borne materials
- Laser-marked indication lines for easy pressure adjustment and process control
- Ergonomic adjustment knob
Low Pressure Corrosion Resistant Fluid Back Pressure Regulator (BPR)
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Hardened stainless steel seat ensure low wear and long life
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Large orifice accommodates high volume flow rates
- Air operated models available for automated control, Conversion kit (15J498)
Low Pressure Mini Fluid Back Pressure Regulator (BPR)
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Tungsten and carbide materials ensure low wear and long life
- Compact and lightweight design saves space and reduces payload for small circulation systems
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Air operated model available for automated control, Conversion kit (237448)

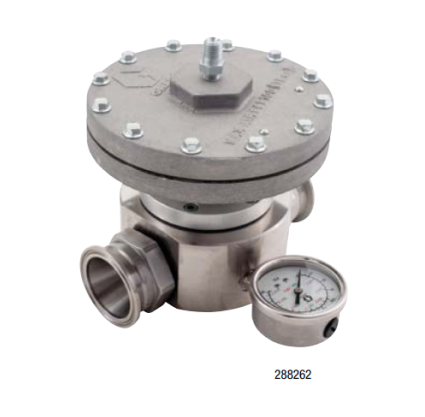

Air Operated Corrosion Resistant Fluid Back Pressure Regulator (BPR)
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Hardened stainless steel seat ensure low wear and long life
- Large orifice accommodates high volume flow rates
- Air operated for remote automated control to eliminate operator interference
- Implement sleep mode to reduce pump energy consumption during non-production
Low Shear Corrosion Resistant Fluid Back Pressure Regulator (BPR)
- Stainless steel membrane diaphragm is highly wear resistant while maintaining accurate responsiveness
- Low Shear diaphragm valve has minimal restriction to reduce material degradation and color matching issues, especially with metallic paint
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Large fluid passages to accommodate high volume flow rates
Low Pressure Fluid Back Pressure Regulator (BPR)
- Electroless nickel plated aluminum housing with smooth flow orifices
- Tungsten and carbide materials to resist wear
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Compatible with solvent-borne materials

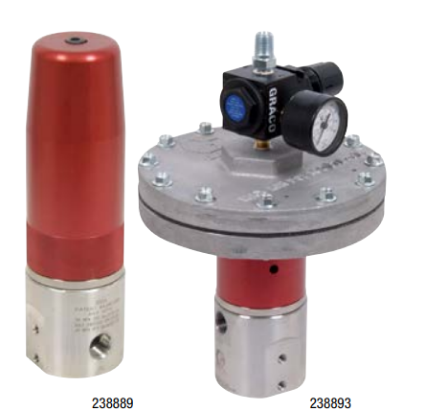

High Pressure Fluid Back Pressure Regulator (BPR)
- Tungsten and carbide materials ensure low wear and long life
- Plated carbon steel housing is compatible with solvent-borne materials
- Laser-marked indication lines for easy pressure adjustment and process control
- Ergonomic adjustment knob

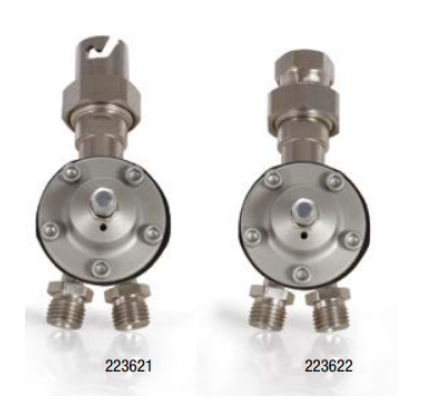

Gun-Mounted Fluid Pressure Regulator Gun Regulator
- Stainless steel materials are compatible with catalyst and waterborne materials
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Easy and accurate pressure adjustment at the gun to fine tune pressure settings during production
- Connects quickly to spray guns using twistlock connector
- Circulate materials though the regulator to ensure a uniform fluid suspension and eliminate material stagnation

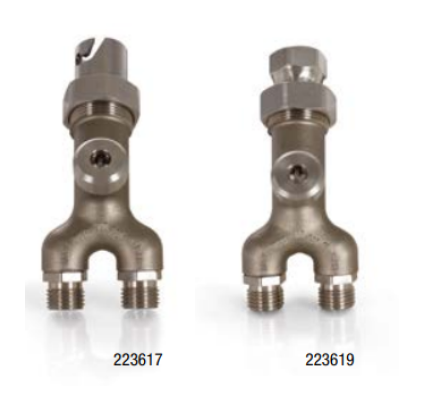

Tamper-Resistant Circulating Restrictor Valves Gun Regulator
- Manually adjust flow settings at the gun
- Tamper resistant adjustment knob to eliminate operator interference
- Circulate materials though the valve to ensure a uniform fluid suspension and eliminate material stagnation
- Stainless steel materials are compatible with catalyst and waterborne materials
- PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
- Connects quickly to spray guns using twistlock connector

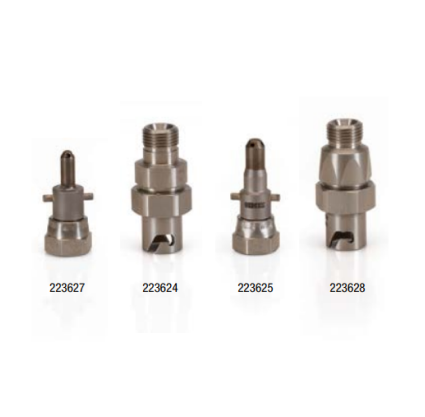

Quick Couplers Other Accessories
- Stainless Steel and PTFE materials are compatible with finishing materials
- Quick couplers automatically seal once disconnected
- Quickly change between guns, regulators, and lines to reduce setup, changeover, and maintenance time
- Don’t flush through guns tips, disconnect and flush through quick connects. Reduce flushing time and avoid premature tip wear.
- Provide flexibility for operators, especially those that own or maintain their own guns. Promote daily maintenance.
- Compatible with Graco Gun Regulators and Restrictors
FAQs
Pressure regulators are made to control the pressure of fluids by maintaining constant output pressure regardless of fluctuations in input pressures, ensuring safety and efficient operations in various systems.
A paint pressure regulator is a type of regulator designed for paint applications, controlling pressure of paint flow through spray guns, ensuring even and consistent application for high quality finish.
Back pressure functions by maintaining a set upstream pressure thus diverting excess fluid towards its source, stabilizing the system and preventing overpressure thus avoiding any damage to the equipment affecting the quality.
A fluid pressure regulator is used for:
Pressure Reduction
Maintaining Consistent Pressure
Safety Applications
Hydraulic Systems
Water Supply Management
Industrial Processes
Gas Control Systems
You can use a paint pressure regulator for other low viscosity liquids as well due to their optimization. But it is also needed to know the compatibility with the considered fluid to avoid any damage or performance issues.
Benefits of using a model 6 bag filter with my pressure regulator:
Enhanced Filtration Efficiency
Improved System Performance
Extended Equipment Lifespan
Reduced Pressure Drop
Compliance with Environmental Regulations
Easy Maintenance and Replacement
Protection Against Contamination
