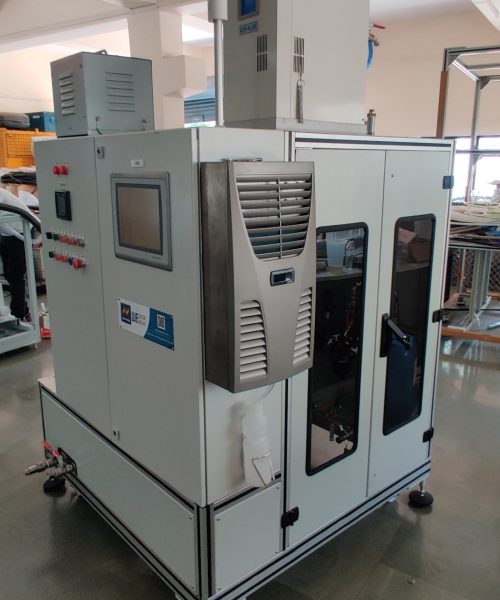

AC Gas charging Machine

Patvin Engineering offers a high-performance AC Gas Charging Machine designed for precise and efficient charging of refrigerant gas in automotive air conditioning systems.

Technical Specifications of AC Gas Charging Machine

  • High Speed: Suitable for a wide range of tact times, from 4-27 JPH, to keep your production lines moving.
  • Strong Vacuum: Achieves a powerful 1mbar vacuum at the gun tip for effective air removal and complete system evacuation.
  • Efficient Charging: Charges refrigerant gas at a rate of 20 to 40 grams per second, ensuring timely completion of the charging process.
  • High Accuracy: Guarantees gas charging accuracy within +/- 20 grams, minimizing waste and ensuring optimal system performance.
  • Lightweight Gun: The gun weighs between 2.2 and 3.0 kilograms, reducing operator fatigue.
  • High Uptime: Boasts a 99% uptime, maximizing production efficiency and minimizing downtime.
  • Thorough Leak Testing: Includes a comprehensive leak testing facility with Nitrogen Pressure Test to ensure system integrity and prevent leaks.
  • Gas Recovery: Features gas recovery capabilities to minimize environmental impact and recover valuable refrigerant.
  • Optional Oil Filling: Includes an optional PAG oil filling system for convenient and efficient oil replenishment.
  • Safety First: Incorporates an inbuilt gas leak detection sensor for optimal safety and to prevent potential hazards.
  • Detailed Reporting: Generates and prints detailed reports on the charging process for quality control and data analysis.

AC Gas Charging Machine Features

  • Customization: Features a customizable machine layout to fit seamlessly into your existing production line or workspace.
  • Tailored Design: Designed with consideration for customer floor space, vehicle parameters, and cycle time for optimal integration.
  • Smart Selection: Enables model or variant selection through a barcode scanner or MES/AMES/VTS system, automatically adjusting charging parameters for different vehicles.
  • Proactive Maintenance: Integrates condition-based and time-based alarms to proactively identify potential issues and prevent unexpected downtime.
  • Efficient Troubleshooting: Provides fault diagnosis through the HMI for quick and easy troubleshooting, minimizing downtime.
  • Energy Efficient: Monitors energy consumption to optimize machine operation and reduce energy costs.
  • Real-time Monitoring: Offers real-time process monitoring on the HMI for enhanced control and visibility, ensuring quality and transparency.
  • Quick Gun Replacement: Incorporates a quick replacement system for the gun, minimizing downtime during maintenance.
  • High-Quality Components: Utilizes high-quality components from reputable manufacturers for long-lasting performance and reliability.

Applications of AC Gas Charging Machine

AC Gas Charging Machine is specifically designed for the precise and efficient charging of refrigerant gas in automotive air conditioning systems, suitable for use in all vehicle types, including trucks, trailers, cars, and buses

Conclusion

Patvin Engineering’s AC Gas Charging Machine is a reliable and efficient solution for accurate and rapid charging of automotive air conditioning systems. With its advanced features, user-friendly interface, and focus on safety and efficiency, this machine can significantly enhance your production processes and improve the overall quality of your vehicles.
