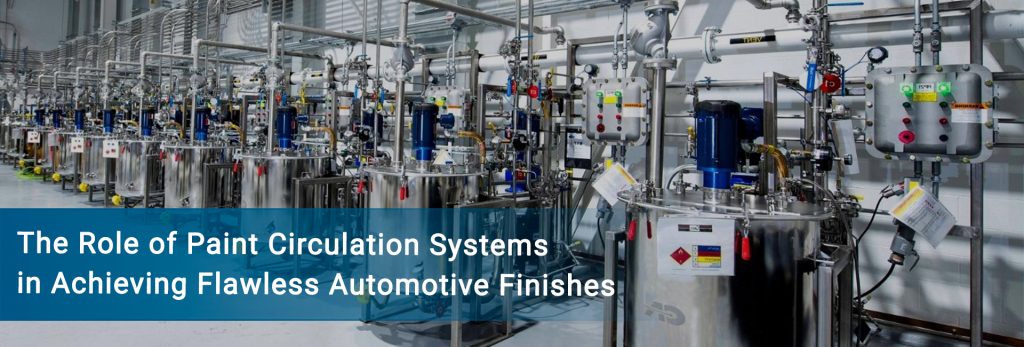

Ever wondered how a brand-new car achieves its mirror-like, stunning finish? While some attribute this to the deft touch of the painter or automatic paint applicators or premium paint, it is actually smart engineering that enables paint to flow smoothly through the paint circulation system’s pipes and valves.
A paint circulation system is known to precisely circulate, mix, and maintain colour integrity. This helps ensure its consistency and uniformity in paint application. Although it does not receive the same applause as engines or AI dashboards, it is what makes a car look flawless before it ever hits the road.
Leading the way in innovation, PATVIN’s SMART Paint Circulation System integrates Industry 4.0 features to maintain precise viscosity, velocity, temperature, pressure, and flow, ensuring every vehicle leaves the line with a flawless finish. Let’s learn more about it.
TL;DR
Achieving a flawless modern automotive finish depends on the harmony of several advanced technologies — from precise paint circulation systems to high-performance applicators and the paint materials themselves. The paint circulation system plays a vital role by ensuring steady flow, consistent pressure, and real-time quality monitoring throughout the process. Together with state-of-the-art paint applicators and carefully engineered coatings, these systems create a process that’s more automated, efficient, and environmentally responsible. The result is a brilliant, mirror-smooth finish on every vehicle that leaves the line — a reflection of both innovation and craftsmanship.

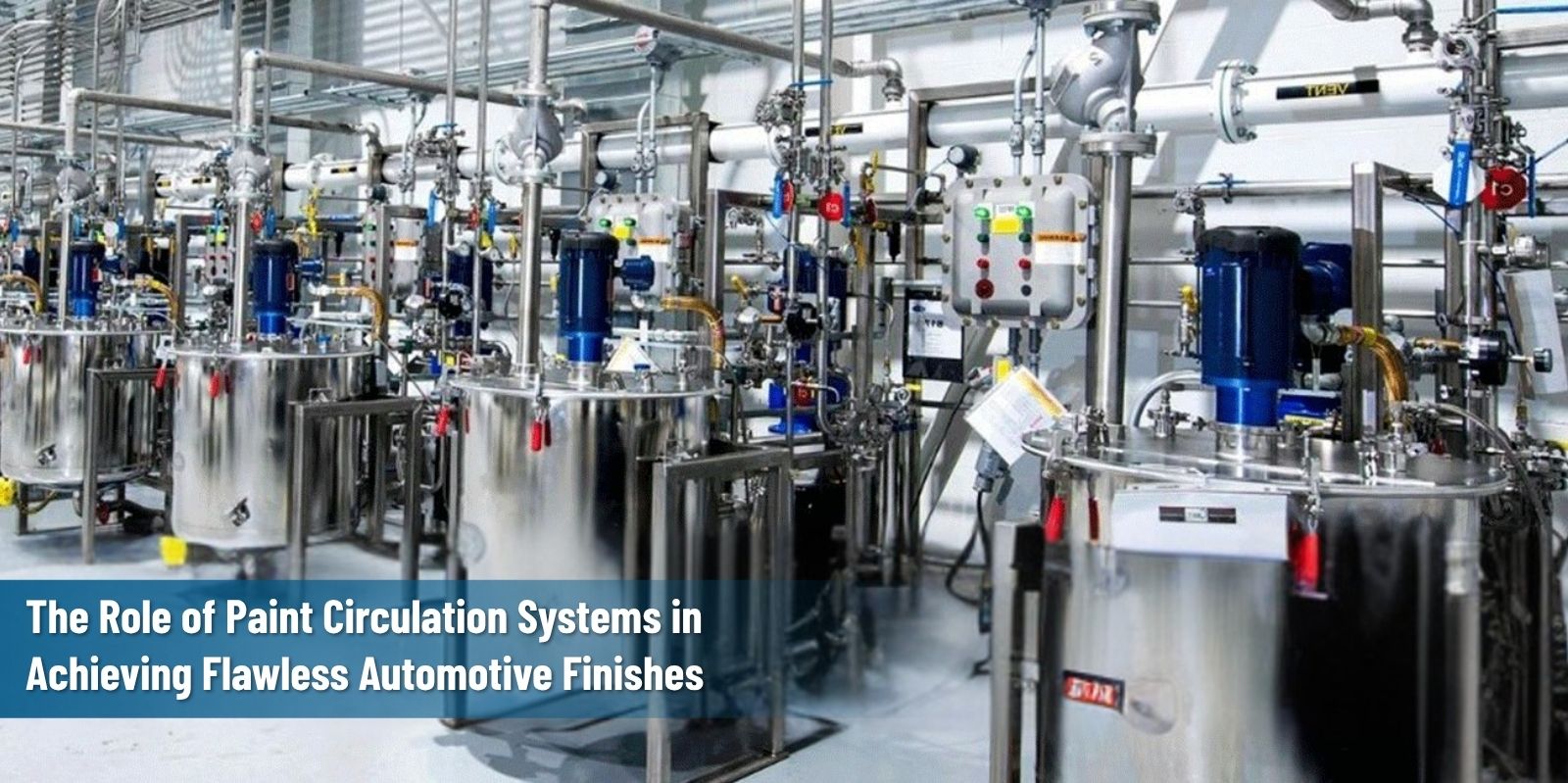

Understanding Paint Circulation Systems
Any paint circulation system includes key design elements such as pumps, pipes, filters, and smart controls that help manage pressure and velocity. A good paint flow network keeps a natural flow from tanks to spray guns or other application areas. It manages the flow, pressure, temperature, and thickness of the material. This makes sure that each location gets the proper amount of paint.
Modern systems, such as Patvin’s SMART paint systems, prevent paint from being too thick or breaking pigments and metallic flakes. Steady flow ensures each coat is smooth and even, eliminating blockages. These systems are widely used in the manufacturing of Cars, SUV’s, trucks, construction equipment, Tractors and farm tools. These systems enhance traditional setups by incorporating real-time viscosity control, dynamic pressure adjustments, automated filter monitoring, and barcode-enabled paint loading. These smart features ensure consistent color, gloss, and film thickness across every car.
How Paint Circulation Systems Work
For optimal outcomes, a well-planned and controlled system is necessary to manage paint control systems. This planned circulation system helps paint move steadily from the tanks. It prevents paint from settling and clogging, which can lead to unevenness and other issues.

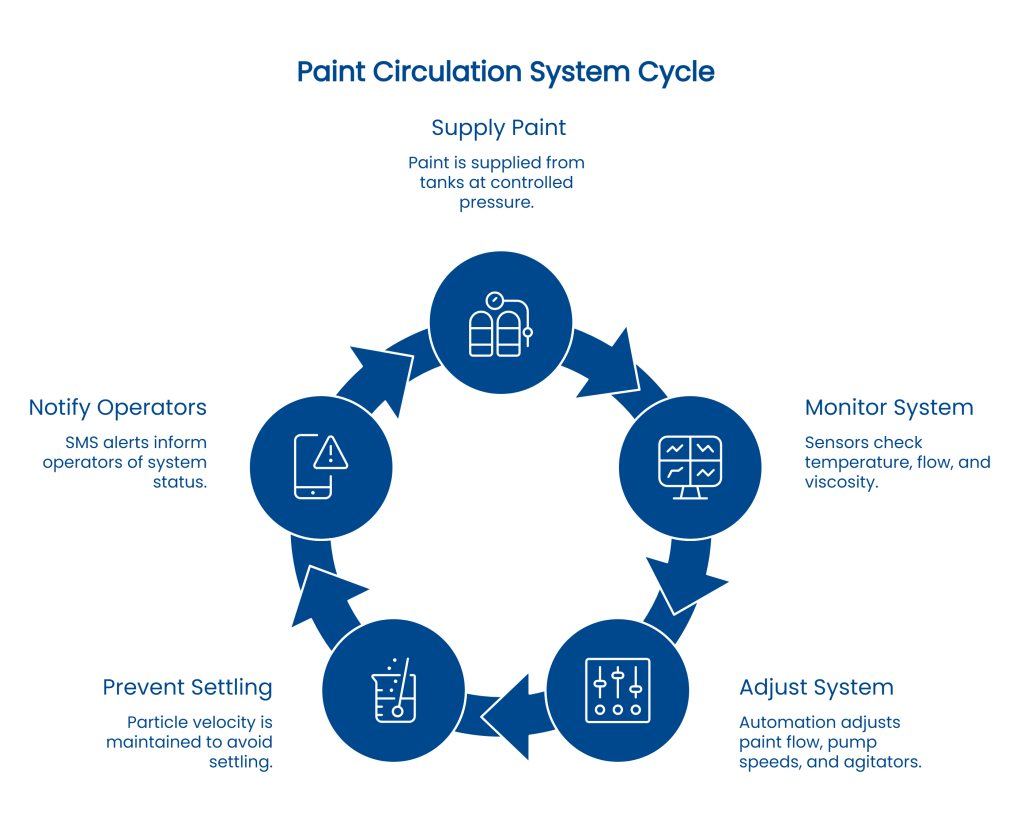

A paint circulation system uses the following components to ensure smooth functioning:
- Usually, the supply pressure is between 80 and 125 PSI, and the spray gun pressure is between 20 and 60 PSI. This ensures that the paint is applied evenly.
- Constantly, sensors check the temperature, flow, and viscosity.
- The system can make changes right away if something goes wrong.
- The appliance uses industrial automation to change the paint flow, pump speeds, and agitators on its own.
PATVIN’s smart paint circulation systems actively prevent settling and clogging by maintaining particle velocity between 40–120 FPM and dynamically adjusting tank agitators. It also provides automated SMS alerts to notify operators of system information or faults, thereby reducing downtime and the need for human intervention.
Types of Paint Circulation Systems
There are mainly three types of paint circulation systems: the 2-pipe systems, the 3-pipe systems, and the pigging system in paint. Each of these caters to different production needs.
- 2-pipe systems: Here, one pipe provides paint, while the other returns excess paint for reuse. It works for moderate to large quantities and changes colours quickly.
- 3-pipe systems: In three-pipe setups, there is an addition of a cleaning line that is used for moving solvents around. This speeds up color transition and cleaning.
- Piggable or Flow-Through Systems: A foam “pig” may drive paint through flow-through or piggable systems. It will reduce waste and speed colour transitions. It also allows fast application with little paint residue.
For more details on the latest improvements and technological upgrades in paint circulation systems, check out Advancements in Paint Circulation Systems for Modern Manufacturing.
Key Benefits of Implementing Paint Circulation Systems

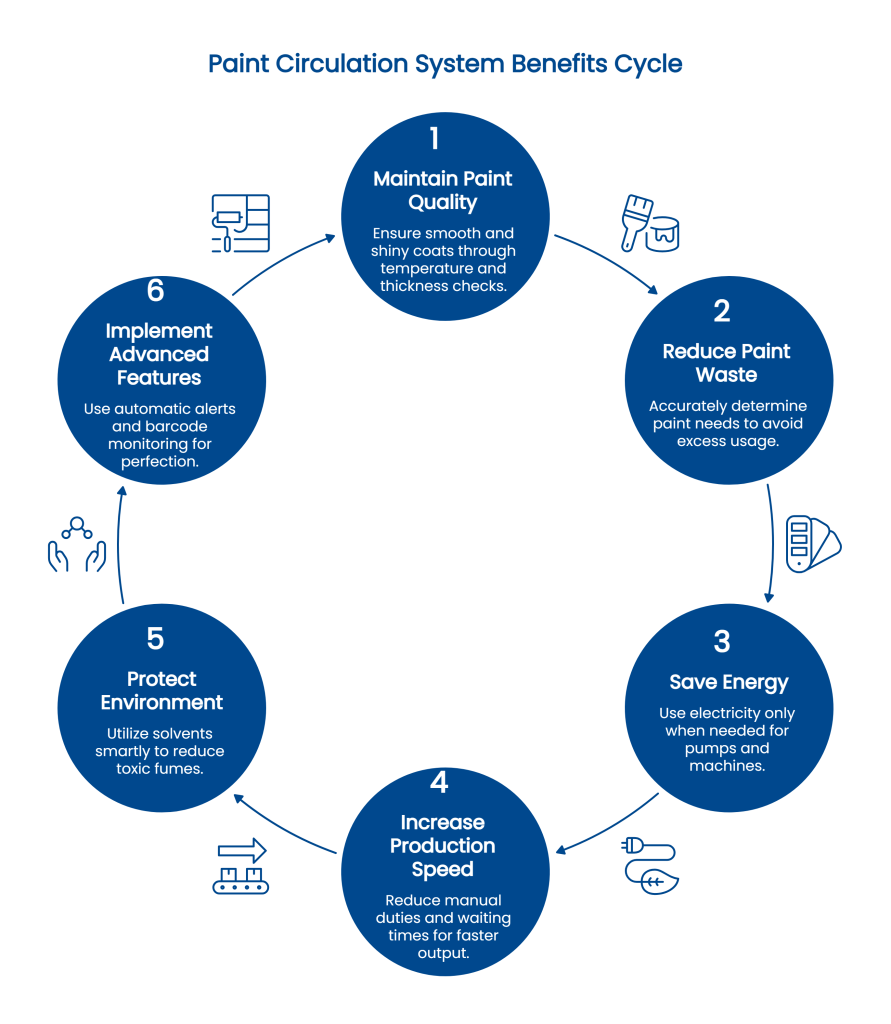

Modern industrial paint system setups do more than just move paint around. They make things last longer, work better, and be better for the environment:
Better Paint Quality:
The system always checks the temperature and thickness to make sure each coat is smooth and shiny.
Less Paint Waste:
Smart tools accurately determine the amount of paint needed and do not use any excess.
Saves Energy:
Machines like pumps only use electricity when needed.
Faster Run: Production is faster and easier because there are fewer manual duties and waiting times.
Good for the environment:
This method utilizes solvents in a smart way to protect the environment and reduce toxic fumes.
Some advanced paint circulation systems take it a step further with features like automatic alerts and barcode monitoring. Without this, no paint would be lost, no color would dry, and every finish would be perfect.
Common Automotive Coating Defects and Their Causes
Even with the most up-to-date technology, things can go wrong if the environment or methods are not functioning properly. These are some common issues:
Defect | Cause |
Runs / Sags | Applying too much paint or using paint with incorrect viscosity. |
Craters / Fish Eyes | Contamination or dirt on the surface that prevents proper adhesion |
Orange Peel | Incorrect spray technique or improper paint flow, and breaking |
Peeling | Poor surface preparation or weak paint adhesion |
Dullness / Pinholes | Environmental issues or trapped air within the paint film |
These problems can be fixed by modern paint drainage systems that keep the pressure, viscosity, and flow steady. This makes mistakes less likely. Such common paint defects in automotive finishes could be avoided with better control procedures.
Design Considerations for Flawless Finishes
Good paint is not enough to give a car a pleasant finish; how it behaves and moves is essential, too. A perfect finish requires a carefully designed system. You can consider the following points for flawless finishes:

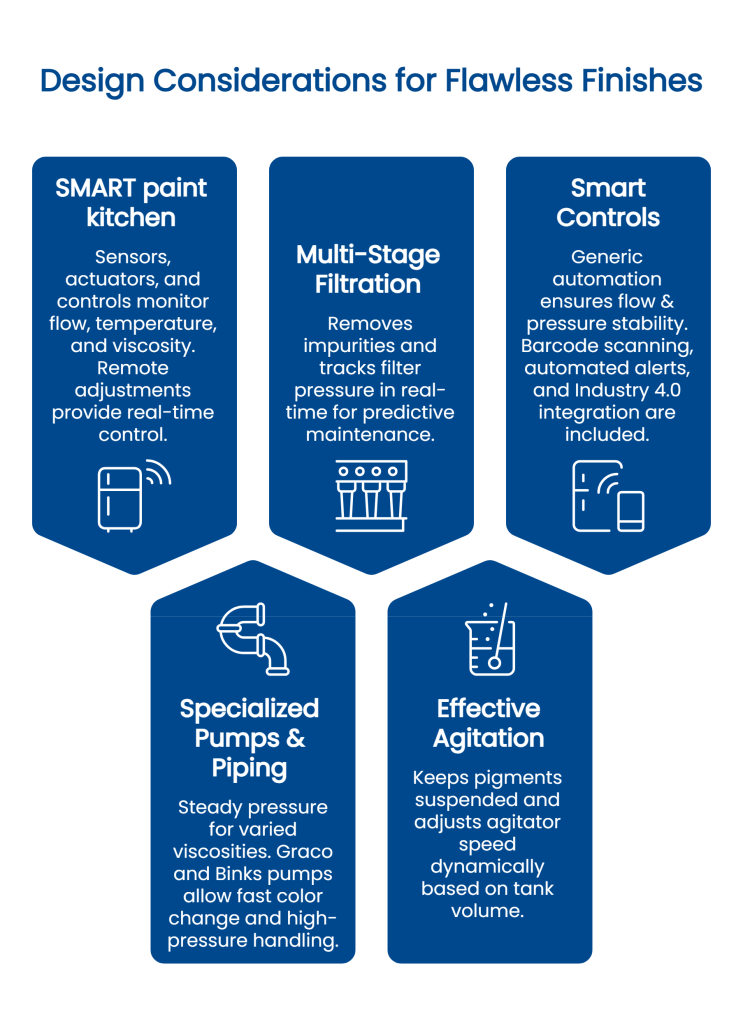

- SMART paint kitchen – this includes sensors, actuators, and controls that monitor flow, temperature, and viscosity. Patvin also adds remote adjustments for better real-time control.
- Specialized Pumps & Piping – Steady pressure for varied viscosities; Graco and Binks pumps allow fast color change and high-pressure handling.
- Multi-Stage Filtration – Removes impurities; tracks filter pressure in real-time for predictive maintenance.
- Effective Agitation – Keeps pigments suspended; adjusts agitator speed dynamically based on tank volume.
- Smart Controls – Generic automation ensures flow & pressure stability; we also add barcode scanning, automated alerts, and Industry 4.0 integration.
Paint finishes will consistently be of high quality and efficiency if these details are carefully considered.
Learn more about how SMART paint circulation systems leverage sensors, automation, and Industry 4.0 integration for optimal performance in All About Smart Paint Circulation Systems.
Maintenance and Troubleshooting Best Practices
Even the most advanced system requires regular maintenance. Here is a table that outlines the best methods for system troubleshooting and maintenance:
Problem Area | Solutions |
Filters and Strainers | Regularly clean to prevent clogs and ensure smooth paint flow. |
Pumps | Maintain grease and keep an eye out for strange noises, drops in pressure, wear, or leaks. |
Fluid Lines | Flush lines when changing paint types; use solvent saver units for better cleaning. |
Spray Guns | Check for drips and uneven spray patterns, and make sure the air-trigger devices work right. |
Back Pressure Regulators | Replace worn valves as needed to maintain steady line pressure. |
Controls / PLC Systems | Verify PLC and actuators; manually trigger to test functionality if needed. |
Operator Training | Teach operators how to safely handle equipment, troubleshoot simple problems, and perform regular maintenance. |
Following these paint system maintenance steps helps manufacturers minimize problems, extend system life, and reduce downtime.
Future Trends in Paint Circulation Systems

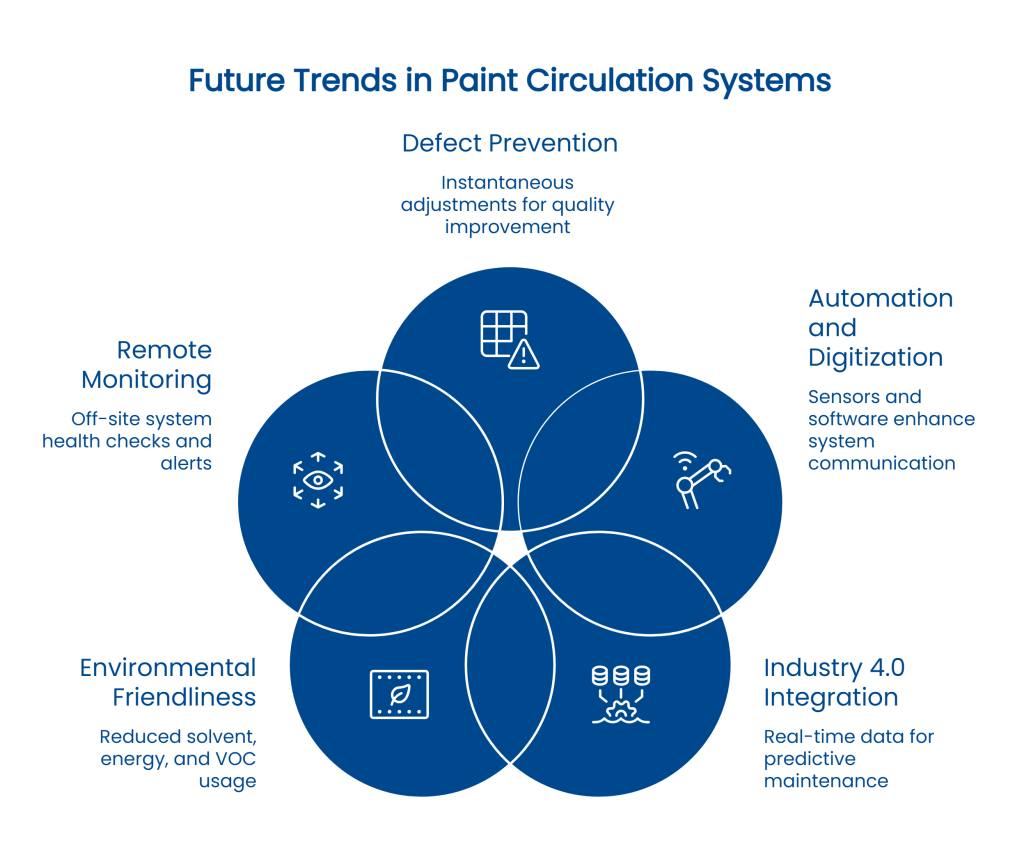

The future belongs to smart, linked, and long-lasting paint circulation systems:
- Automation and digitization: Sensors and software are letting more and more systems talk to each other. This makes them work better and lets managers know when something goes wrong.
- Industry 4.0 integration: Manufacturers can use real-time data to predict maintenance needs and make smarter decisions.
- Less solvent, less energy, and fewer volatile organic compounds (VOCs) are used by systems.
- Operators can check on the system’s health from afar and get alerts on their computers or cellphones.
- Paint defect prevention and smart adjustments: Instantaneous pump flow, pressure, and speed adjustments reduce waste and increase quality.
In addition to improving car finishes, these trends enable companies to use more eco-friendly, efficient, and safe automotive manufacturing techniques.
Conclusion
Give automotive objects a lasting finish that delivers a bold statement. Our modern automotive paint finishes offer an exceptional level of perfection in the final touch. This ensures consistency in colour, quality, and that it stays for years to come. As the production industry moves toward smarter, greener technologies, the next step will be defined by accuracy and automation.
With innovative industrial painting solutions, Patvin has you covered with easy-to-use paint circulation solutions that are high-quality, energy-efficient, and safe for the environment. Collaborate with Patvin today to expertly craft each coat!
FAQ's
A paint circulation system is a closed system of pipes, pumps, agitators, and valves that move coating material all the time from where it is stored to where it is used. It keeps the flow, temperature, viscosity, and pressure constant, which stops the fluid from settling and getting clogged. With these technologies, spray painting can be done regularly, colors can be changed quickly, and waste in automated production can be cut down.
Pigment settling, solvent separation, and gelation can't happen when the paint is constantly being circulated. This keeps the paint mixed and ready to be atomized. It keeps the temperature and viscosity of the target fixed, speeds up color changes, and lowers waste. When the film is applied to thousands of items at high speeds on car production lines, the thickness and finish quality are always the same, thanks to consistent flow.
Supply pressures are usually between 82 and 122 PSI, and breaking or gun inlet pressures are usually between 20 and 60 PSI. These numbers are a good balance between the pump's ability to hold more, the steadiness of the spray pattern, and the effectiveness of the breaking. The exact setpoints rely on the paint, the temperature, the nozzle size, and the building's needs.
The temperature, flow, pressure, and density of a liquid are all checked by sensors. It tells control systems what to do, which changes how fast pumps, agitators, and valves work. When problems are found early in real time, alarms go off or steps are taken to fix them. This keeps the video quality high and the downtime low. Trend analysis for planned maintenance and process improvement is also helped by logging data, which makes things run more easily.
Setpoints are kept exactly where they should be by automation of pumps, agitators, and valves. This cuts down on mistakes and changes. With analytics, it speeds up cycle times, handles color-change routines, and lets you do maintenance that is planned ahead of time. This leads to fewer rejects, faster throughput, lower energy use, and a consistent finish quality. This is very important for car lines that need to be reliable and handle a lot of work.
Piggable systems use a foam pig to move the extra paint through pipes and into the next container or application spot. There is not much debris left in the lines after this mechanical sweep, so a lot less volume and fluid are needed to clean them. The result is faster color changes, cheaper waste removal, and better use of materials in general.
Modern methods make it possible to recover solvents, reduce waste, and give exact doses. The use of chemicals and the release of volatile organic compounds are cut down. Pumps that use less energy, agitation that only happens when it's needed, and cleaning in steps are all things that can help save energy. There is less loss when there is less overspray and rework. All of these steps will help the business follow the rules and get better marks for being green.
Routine maintenance includes checking and lubricating pumps, flushing lines every so often to see if the color changes, checking spray-gun patterns, validating back-pressure regulators, replacing worn valves, testing PLC controllers and actuators, and training operators. Systems can last longer if they have the right paperwork and are fixed quickly. This keeps production going and stops downtime.
