Top 5 Common Mistakes in Paint Application and How to Avoid Them

A flawless coat of paint looks simple—until it isn’t. In automotive, heavy, and industrial machinery, even minor paint application mistakes can be noticeable. In factories, paint defect prevention is critical for brand reputation and regulatory compliance. Below are the five most frequent paint-application challenges in factories, along with practical fixes with well-thought-out solutions and newer technology.

TL;DR

Even the smallest painting faux pas can lead to peeling, streaks, and uneven gloss. Inconsistency in temperature, mixing, or flow can really affect the quality of finishes. Patvin’s high-tech circulation system is designed to keep the paint stable and minimise errors. You can save time, money, and work by learning smarter ways to paint.

Why Getting Paint Application Right Matters

The application of paint on any factory product isn’t about beautification alone; it’s a critical layer of protection and performance.  Besides colouring, it protects assets, raises brand value, and extends system life. But if done wrong, it causes waste, downtime, rework, and damage to customer trust.

The paint ensures:

• Protection against corrosion and chemical damage
• Reduction of wear and extension of machine life
• Gives products a premium finish and brand value
• Cuts maintenance and warranty costs
• Improves operational efficiency
• Supports regulatory and safety standards



These days, there is a lot of stress on manufacturers to finish tasks more quickly, thoroughly, and reliably. A flawless finish shows integrity; a flawed one creates questions.

In addition, paint defects cost a lot more than just repainting. It can slow down production, lead to extra work, unhappy customers, and even contracts being broken.

Mistake 1: Poor Surface Preparation & Paint Defect Prevention

The “real” work that companies typically rush to get done is painting. Working in such a rush, however, makes many overlook that it isn’t sticky on surfaces already coated with dust, oil, rust, or moisture. When paint is put on such surfaces, it begins to peel, burn, bubble, flake, and even rust within a few days. But this blunder is easy to fix if you remember these things:

• Cleaning surfaces well will get rid of oil, grease, dust, and water.
• Repair any holes, chips, or dings before you paint.
• Blast or sand the surface until it is the desired profile.
• Inspect the area to ensure it is completely dry.



The quality of the paint is irrelevant if the base is not strong enough to sustain the paint for the long haul. If you prepare the surface smoothly, you will doubtlessly get a strong coat that lasts longer.  This will help in avoiding one of the most common mistakes in paint coating.

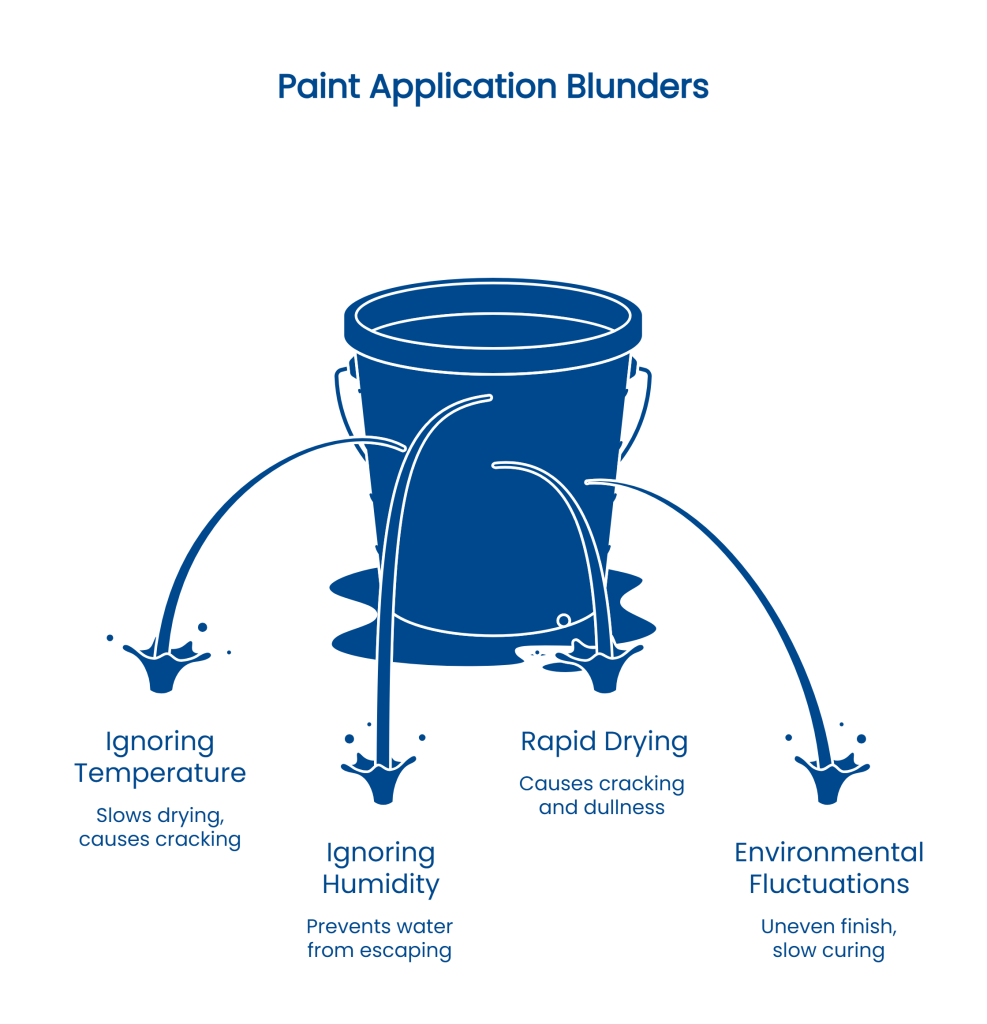

Mistake 2: Ignoring Temperature & Humidity in Paint Application

When painting, another common mistake is not paying attention to how the paint will react with the surroundings. If you do not care about the weather and humidity, the outcome is up to chance.

While humidity slows drying and prevents water from escaping, low temperatures hinder the drying process. When paint dries too rapidly in hot weather, it can crack or become dull. Even minor fluctuations in the environment can cause the finish to be uneven, the film to dry slowly or not cure properly, to crack or peel, and to lose strength.

 It is possible to steer clear of this blunder by following these instructions:

• Stick to the temperature and humidity ranges that the manufacturer has set.
• When you can, use paint booths that let you set the temperature.
• When the weather is bad or the ground is wet, don’t paint.
• Let enough air flow through the substance to help it dry out and boil off.

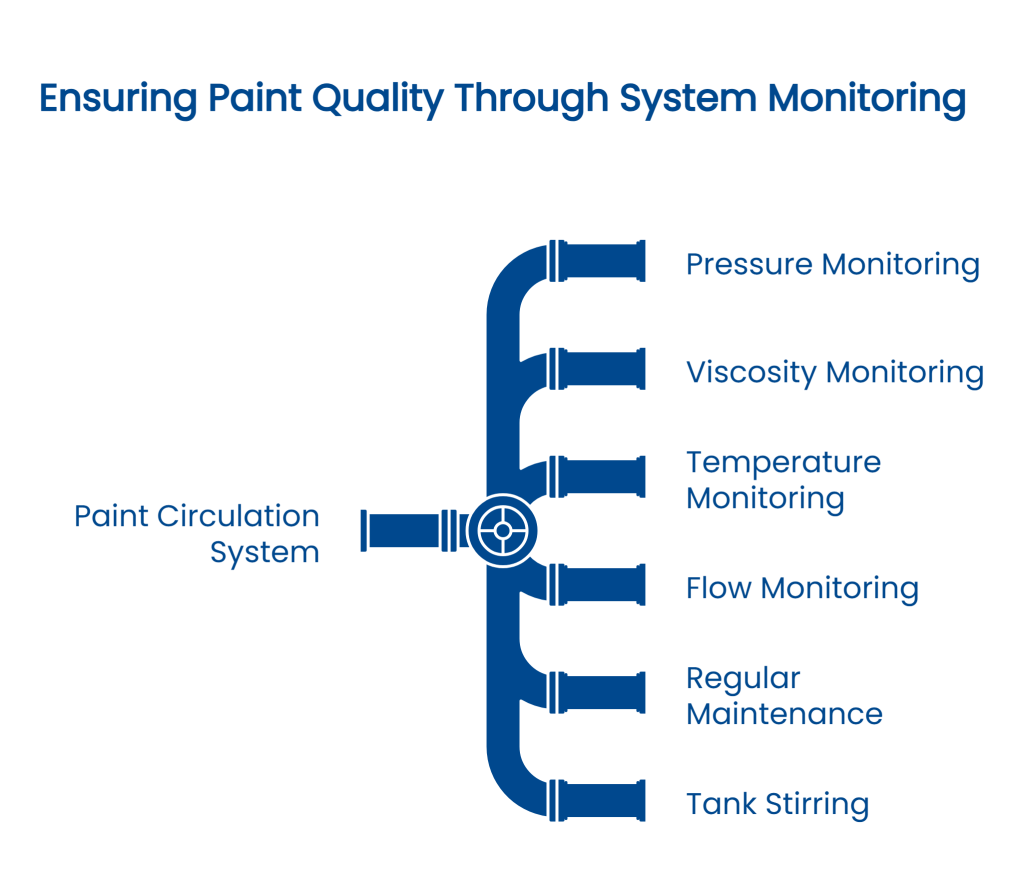

Mistake 3: Unstable Paint Circulation System Pressure & Viscosity Monitoring

Industrial painting relies heavily on consistency. Defects such as streaks, shade differences, graininess, or uneven film thickness appear immediately when the paint circulation system pressure drops.

At high volumes, manual checking can not keep up.  It’s possible for paint to settle in pipes, viscosity to change, and pressure to drop. These are typical paint circulation system problems that might reduce the final quality. When circulation is insufficient, problems such as colour changes, uneven coverage, settling of dirt or pigment, waste from excessive spray, and line stoppage can occur. However, this can be avoided by :

• Use systems that control pressure and flow automatically with real-time paint viscosity monitoring.
• The temperature, flow, and viscosity can all be seen right now.
• Plan regular paint circulation pump maintenance and lines.
• To keep things from settling, make sure the tanks are stirred well.

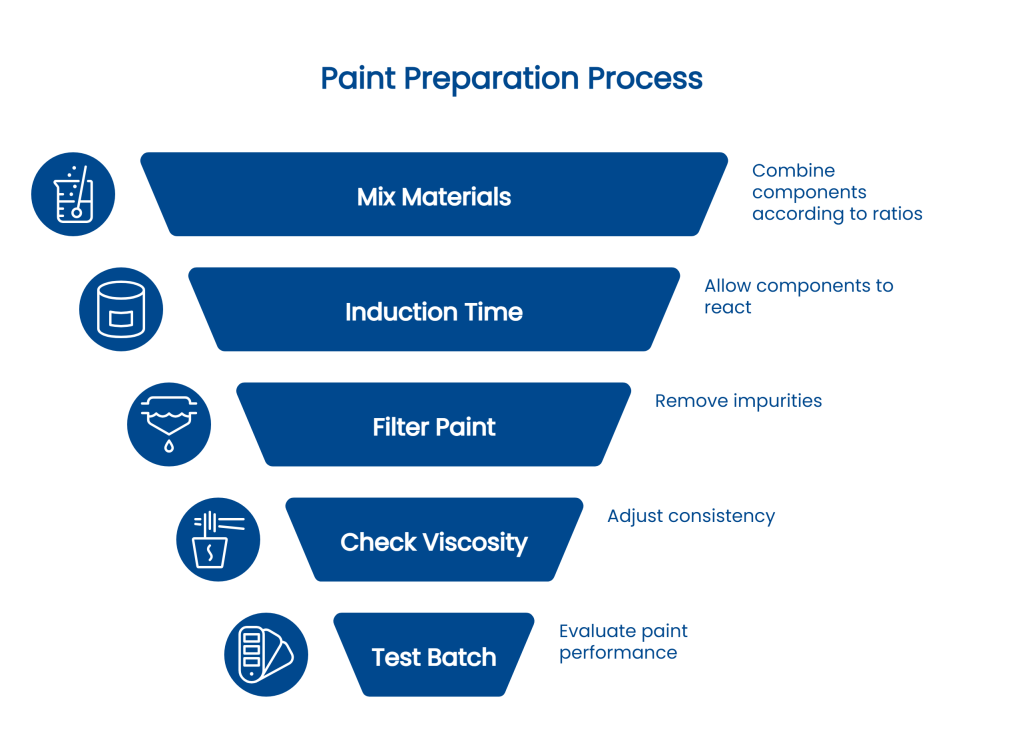

Mistake 4: Wrong Mixing Ratios & Poor Material Prep

Paint has a lot of problems even before you put a brush to the canvas. If you don’t mix the materials right, skip the induction time, or don’t filter them, the film may not build up well, the colours may not match, and it may not protect as well. Without proper mixing, you may run into issues like:

• Bright streaks or eye-catching spots of colour
• Weak adhesion
• Soft film or incomplete curing
• Uneven gloss levels



To prevent this from occurring, it’s essential for workers to ensure:

• Be sure to adhere to the mixing ratios as suggested.
• Choosing the appropriate mechanical mixers is essential.
• Continue to incorporate the appropriate quantities of solvent and hardener.
• It’s a good idea to filter your paint before using it.
• Make sure to check the viscosity and adjust it if necessary.
• Test a small batch when using new material



This way, you can make sure everything works as it should without putting too much on the line at once. You can expect to get the same results every time you prepare.

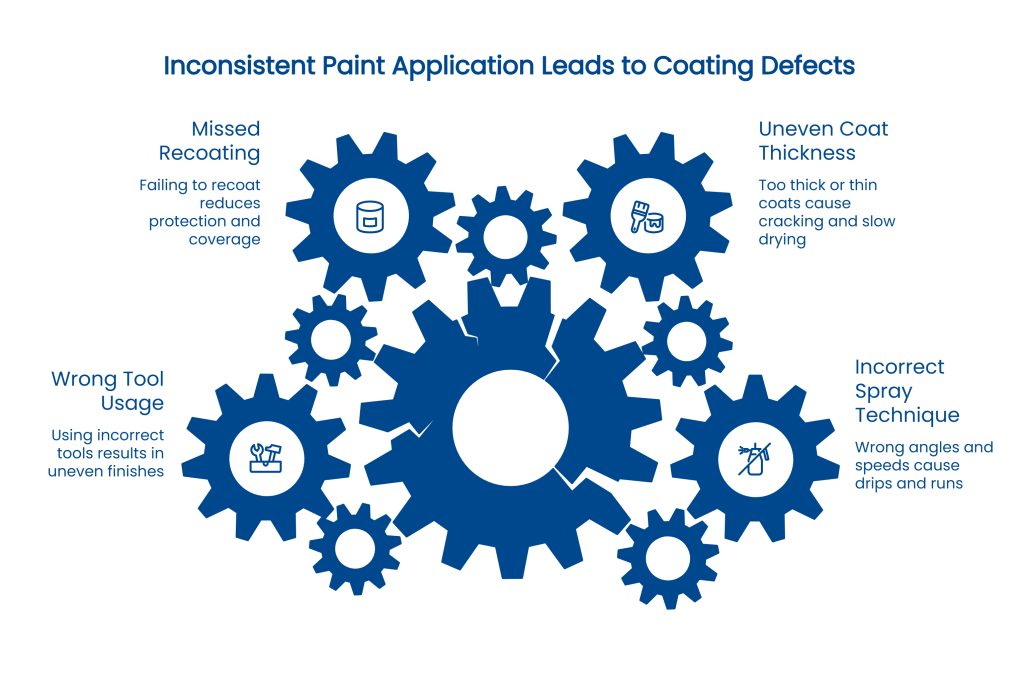

Mistake 5: Inconsistent Paint Application Practices & Coating Defects

Proper use of paintbrushes, rollers, and paint guns is also crucial. Your best preparation and mixing of ingredients won’t help if you don’t use them carefully. Common mistakes when handling paint include using the wrong spray angles and speeds, applying coats that are too thick or too thin, failing to recoat when instructed, and using the wrong tools. This can lead to paint drooping, cracking, a slower drying time, less protection, and uneven coverage.

 To fix these, though, consider the following:

• Applying thin, even coats might help you achieve a better build.
• The spray patterns must be uniform and fully covered.
• Always use thickness gauges when inspecting films, whether they are wet or dry.
• Train operators regularly.



These paint application mistakes can cause uneven finishes and lost time if not fixed.

The Cost of Paint Defects

Negative outcomes, such as redoing tasks, material waste, and production delays, can result from messy painting. They also make customers unhappy, hurt the brand’s reputation, and lower sales overall. Damaged paint can sometimes lead to warranty claims, legal problems, or poor reviews. All of these are awful for the business and lower its profits.

Where Smart Paint Circulation Systems Help

Modern paint finishing relies solely on data, sensors, and automation, cutting out any room for guesswork. Smart paint circulation systems maintain constant pressure, control temperature in real time, and automatically adjust viscosity. This keeps the pigment suspension stable.

With barcodes, these systems also let you track materials and send alerts for preventive maintenance. In this way, mistakes are less likely to happen and problems can be fixed faster.

Connectivity through Industry 4.0, automatic cleaning, and energy-efficient pumps help them cut down on waste, stop defects, and boost uptime. Thus, being better at painting means less trouble, better results, and more money.

If you’d like to dive deeper into how advanced circulation systems improve finish quality, check out our blog on the Role of Paint Circulation Systems in Achieving Flawless Automotive Finishes.

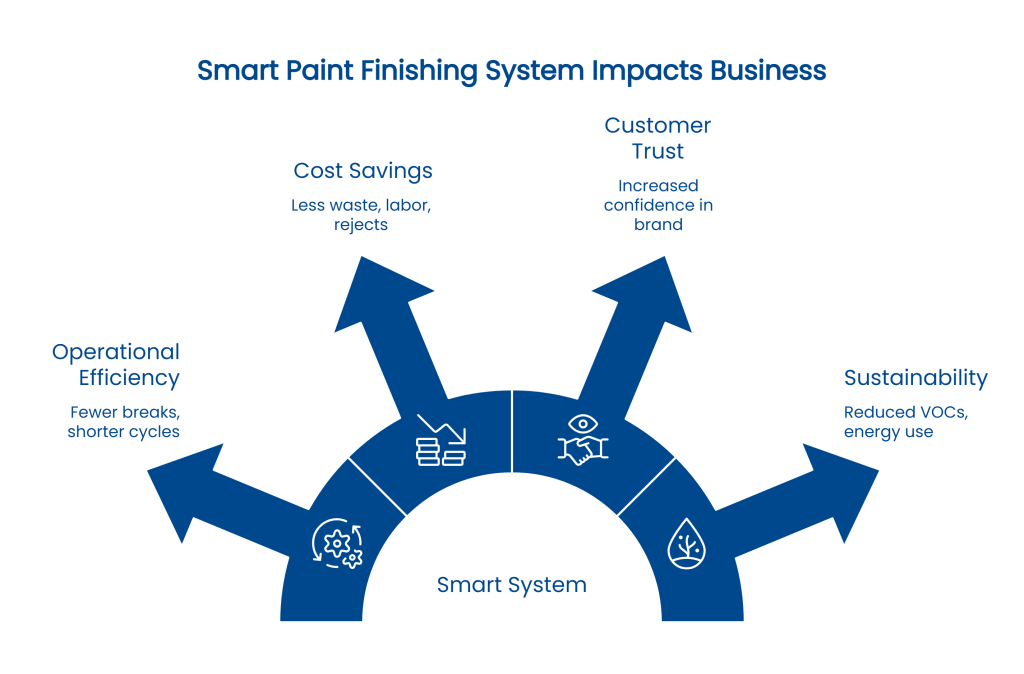

Business Impact & ROI

A good paint finishing system does more than just make the surface look better. It has a direct effect on operations. Companies have fewer breaks, shorter cycle times, and steady output. Processes go more smoothly, and employees need less training.

Smart systems save money in the long run. They cut down on waste, labour costs, and the number of rejects or warranty claims. This also makes customers more confident and trusting in the brand.

Sustainability gets better, too. Modern systems cut down on VOC emissions, use energy more efficiently, and produce less waste. This helps businesses save money and reach their environmental goals.

A smart finishing system gives clear returns. They boost quality, speed up production, and make customers more likely to trust you. They turn into real assets instead of just costs. Putting money into them is a step towards better business, more profit, and growth over time.

Conclusion

In the end, poor prep, wrong mixing, or uneven application doesn’t just spoil the finish; it raises costs and shortens product life. Under controlled conditions and the right application, the outcome is stronger & smoother paint surfaces and longer-lasting performance.

Seek to create items with fewer imperfections and more refined surfaces? It’s simple with Patvin’s Smart Paint Circulation System, designed to ensure consistent flow, precise pressure, and premium finishes. Contact us today!

If you’re interested in how modern technology is improving circulation systems further, you can also check out our blog on Advancements in Paint Circulation Systems for Modern Manufacturing.
